Babicz SB-3543-010 FCH Z Series 6 hole Strat Bridge Narrow

Babicz Bridges are well known for fluid movement, increased sustain and quality construction. They may look a little less traditional from other bridges, but if the aesthetic isn't an issue, we think you'll like these.

The Babicz eCam design offers 50 times more surface contact with the string than traditional saddles, have no air gaps beneath the saddles for increased contact between saddle and bridge plate, single screw action adjustment and an adjust ment lock.

This saddle is the narrow spacing format of both string and the 6 holes in front. Please check measurements before ordering. We're working on a database of what parts work on what, but that's a large task.

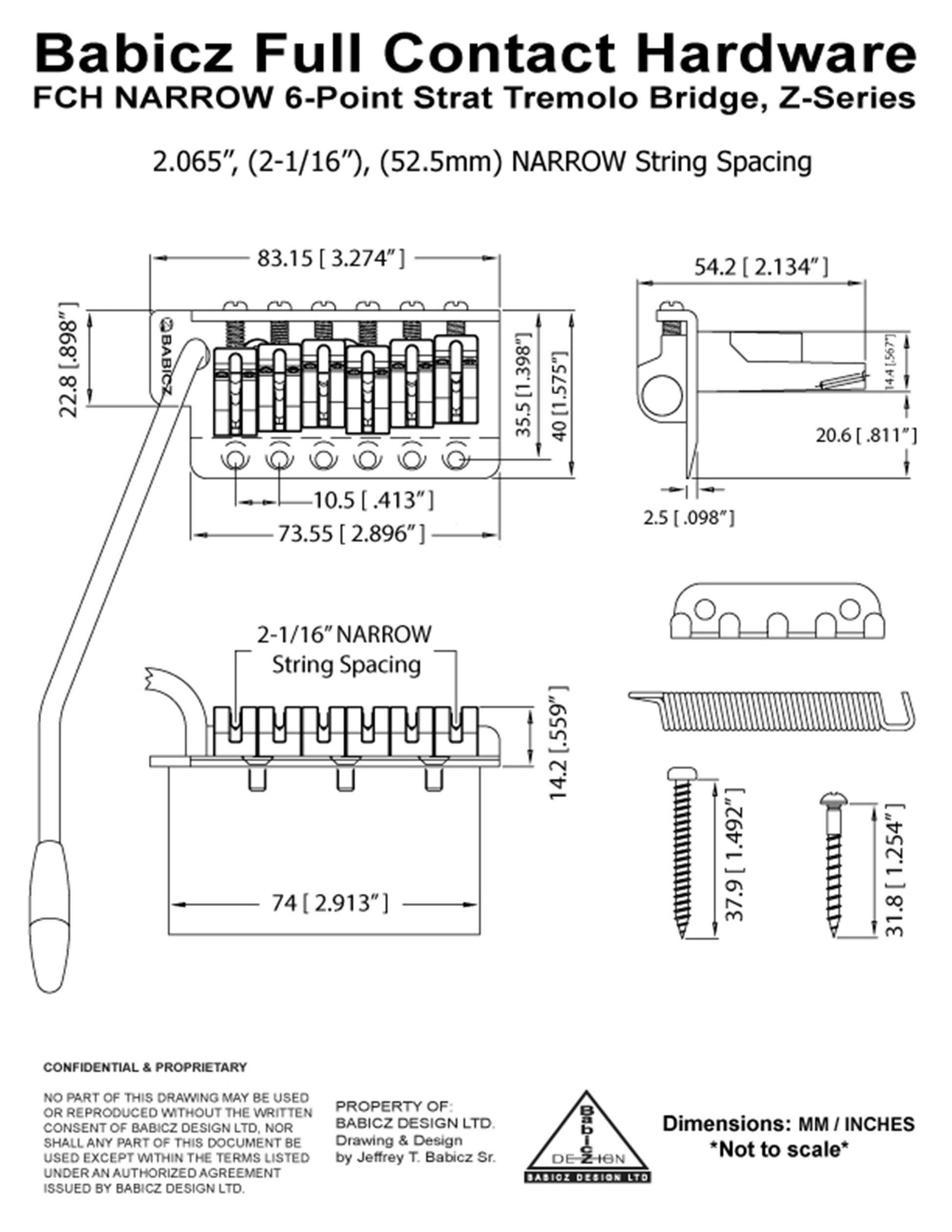

Width of front holes: 2.065 in / 52.5mm
E to E spacing: 2-1/16 in
Block Width: 2.913 in / 74mm
Plate Width including trem arm: 3.274 in / 83.15 mm
Plate Front Width: 2.896 in / 73.55 mm
