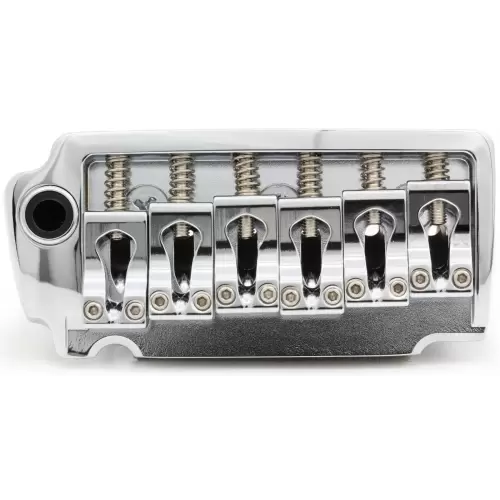

Gotoh EV510T-BS Guitar Bridge Tremolo Brass Saddles (C)

Gotoh EV510T-BS Guitar Bridge Tremolo Brass Saddles (C)

Regular price $127.00 USD
Regular price Sale price $127.00 USD
Sale Sold out
Shipping calculated at checkout.
Instrument/Accessory finish

Note: This item is currently a special order for us, please allow extra time to ship. Ordering this product helps us determine what to add to our inventory as we grow.

Brass saddle version of the EV510T series tremolo bridge featuring Gotoh’s patented stud lock system and FST block.

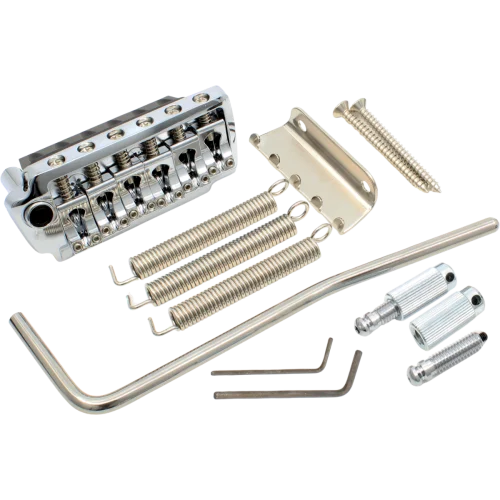

Gotoh 510T Series Tremolos are machined with Chrome Molybdenum Steel knife edges to withstand years of abuse and trouble free use. The tremolo block is designed to allow the strings to contact the saddle without touching the block as it passes through which increases sustain and tuning stability. Studs, anchors, claw with screws, springs, arm, and hex keys for adjustments are all included with this tremolo.

Gotoh's original FST feature (PAT.) is located between the saddle and ball end. The large channel keeps the strings from touching the plate. This feature improves the tremoloʼs ability to return to the tuned position after using the tremolo arm.

Block Height 42 mm
Block Width 64 mm
Bridge Length 39 mm
Bridge Width 85 mm
Saddle Height 6 mm
Saddle Length 20 mm
Saddle Width 10.8 mm
Stud Anchor Diameter 10 mm
Stud Anchor Height 22.5 mm
Stud Height 23.5 mm
Stud Spacing 56 mm
Stud Thread M6
