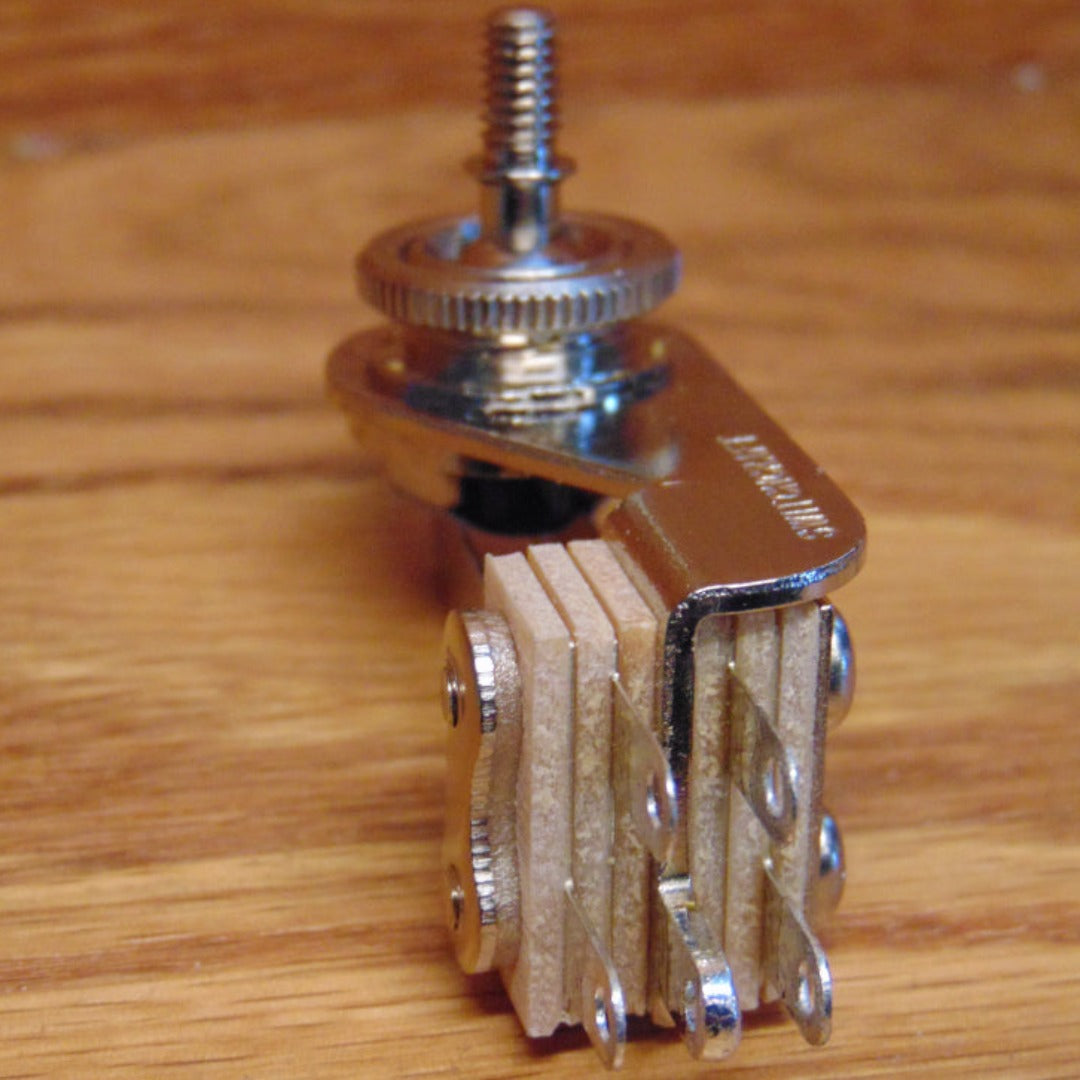

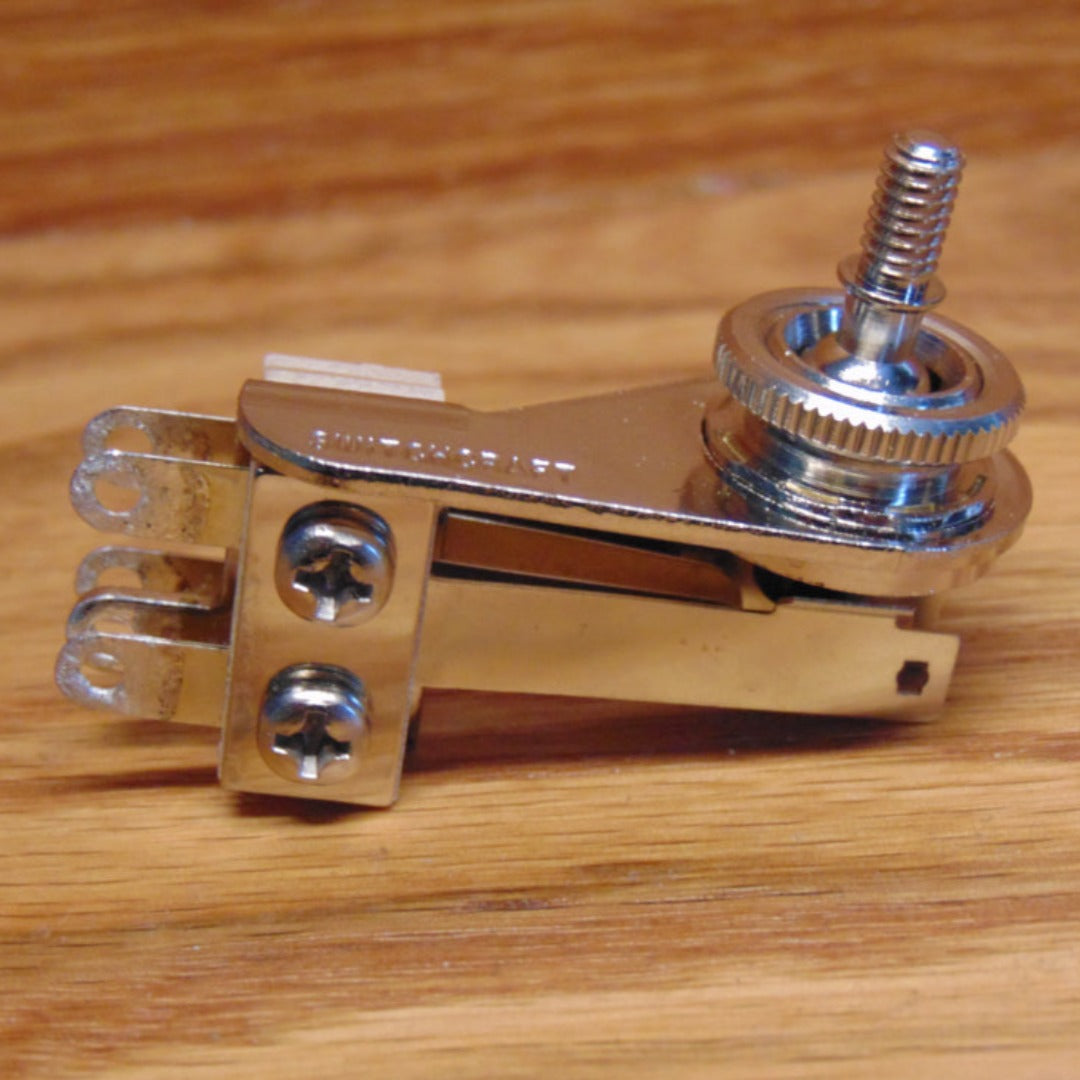

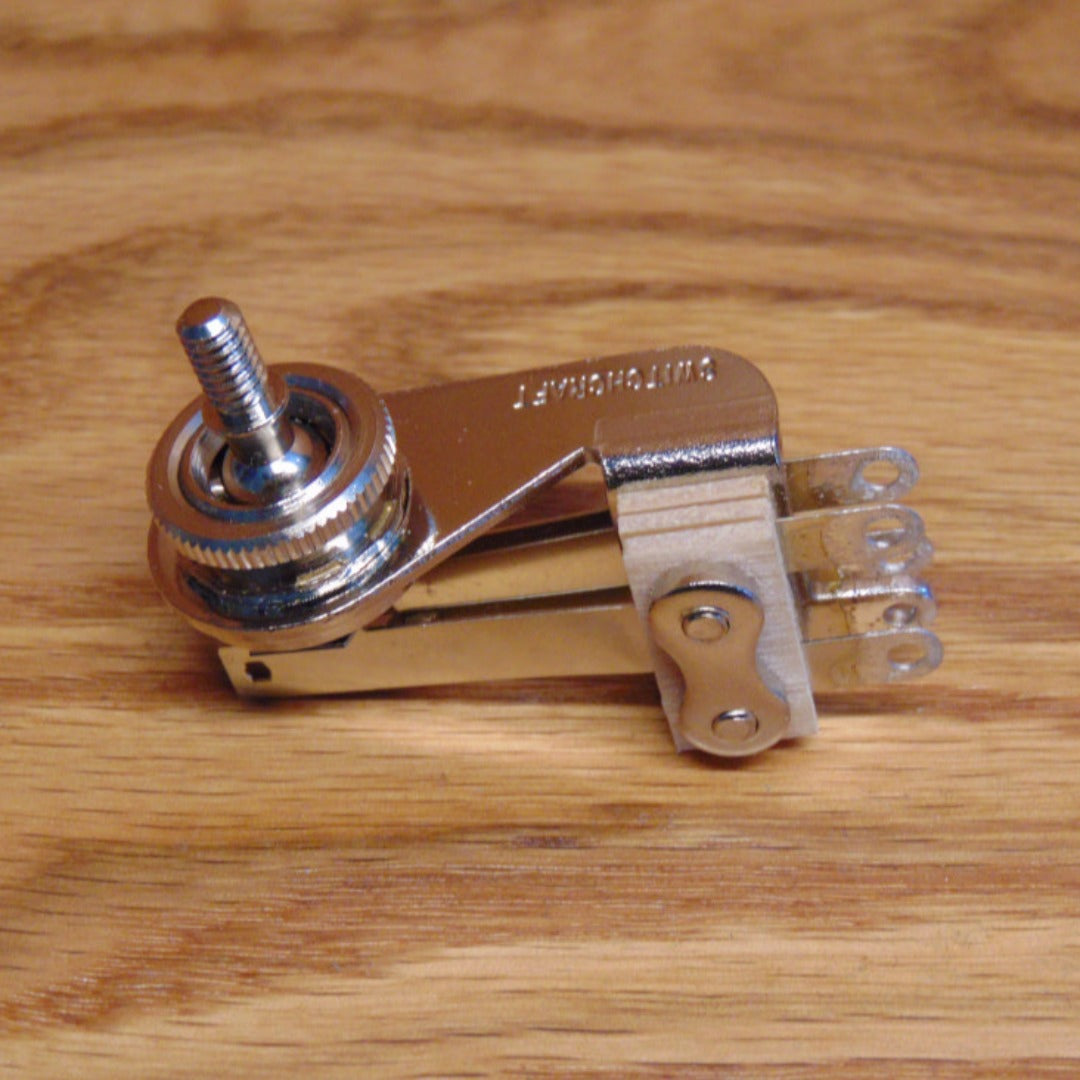

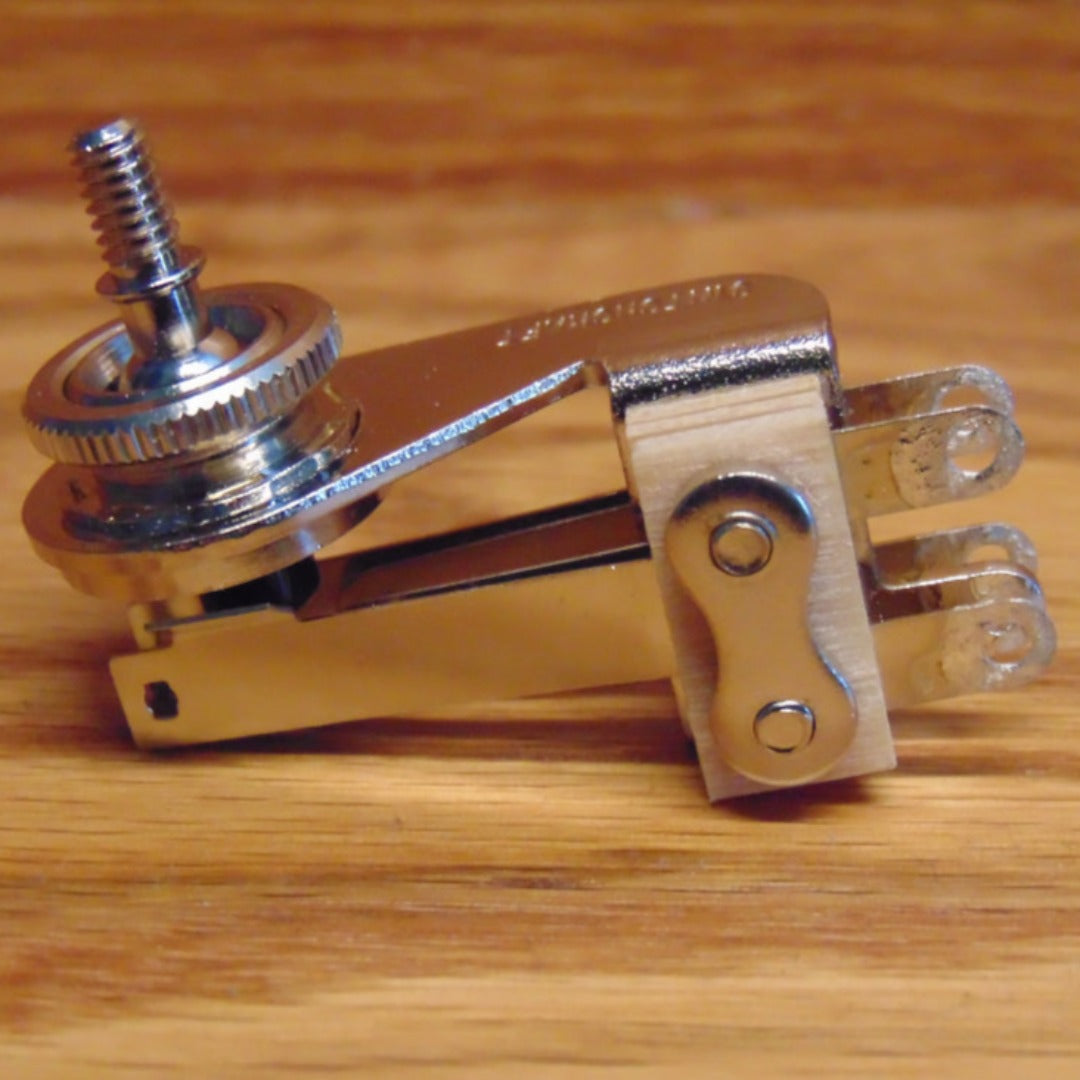

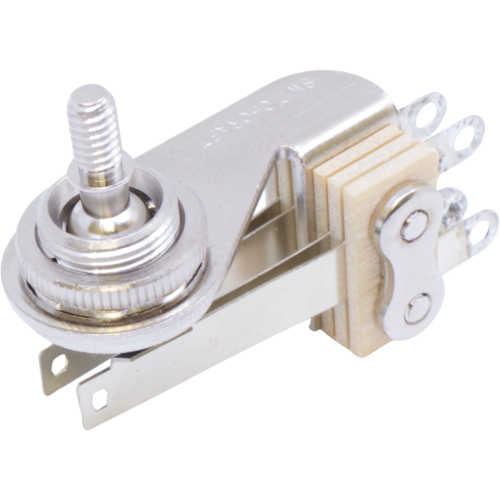

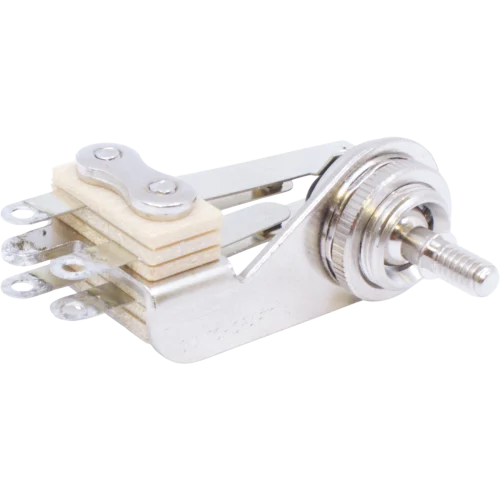

Switchcraft W-SC-W01 Pickup Selector Toggle Switch L-type for Gibson Nickel

Switchcraft is made in Chicago and among the finest switches across all of the industrial electronics industry.

Switchcraft 3 position Pickup Selector, Replacement for Gibson L-Type. Similar to Gibson® PSTS-010. As found on 335 hollow body style guitars as well as thinner solid bodies such as the Gibson SG.

This version of the L-Type switch is used in the common two pickup wiring for a neck position, middle position with neck and bridge, and a bridge position.

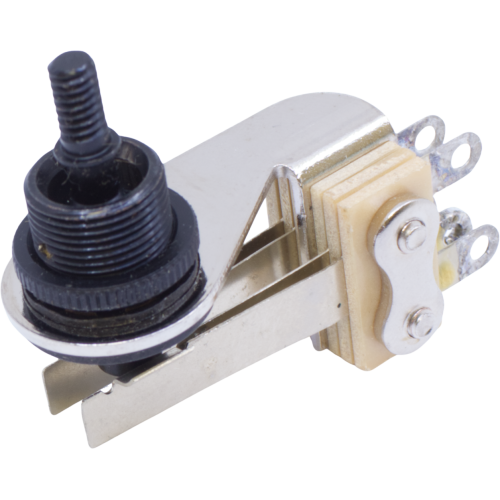

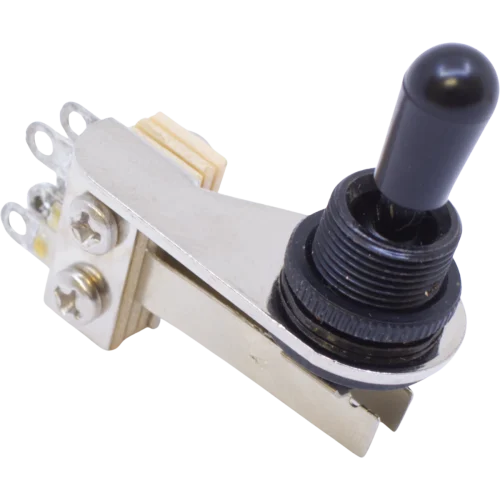

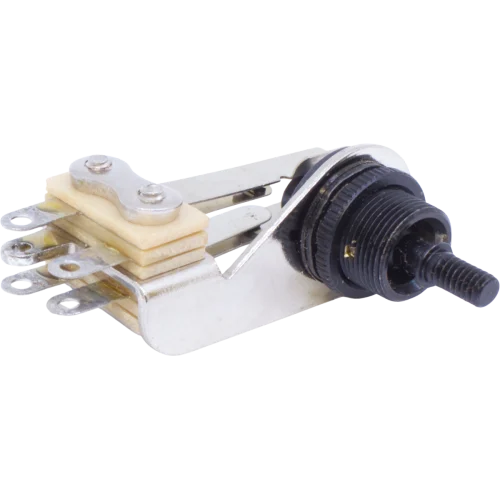

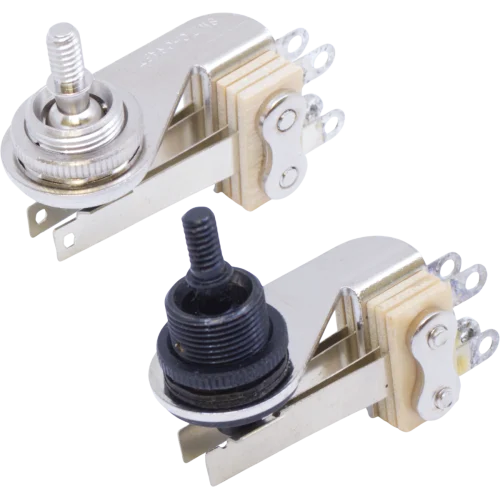

The black version features a slightly longer (3/8”) bushing ideal for thicker topped guitars.

The Switchcraft Type 12013X and 12014X are classic right-angle pickup selector switches, trusted by technicians and manufacturers for their exceptional durability and reliability. This 3-position locking switch features a robust design and welded silver contacts, ensuring a long lifespan even in the most demanding environments. With its dual SPST (break) circuit, it is the industry standard for pickup selection in two-pickup guitars like many Gibson SG guitars. Switchcraft pickup selector switches provide a secure and reliable switching solution that audio professionals have relied on for decades.

Configuration

• Number of Conductors: 5
• Mounting Type: Panel
• Mounting Feature: Right Angle
• Termination Style: Solder Cup
• Contact Plating: Silver
• Locking: Locking
• Number of Positions: 3

Electrical

• Current Rating: 3 Amps
• Circuit-Schematic: SPST / SPDT (transfer)

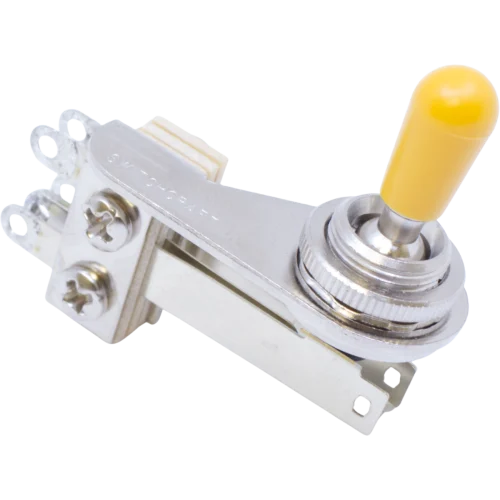

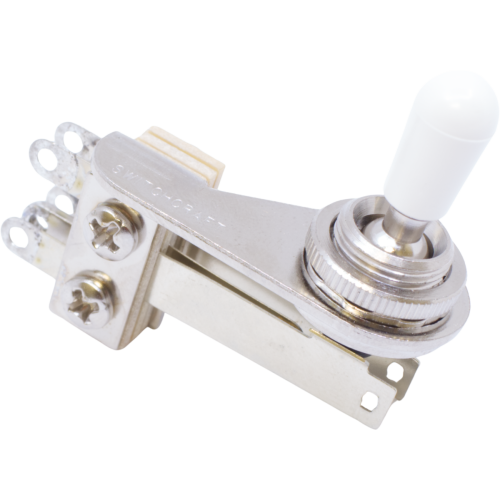

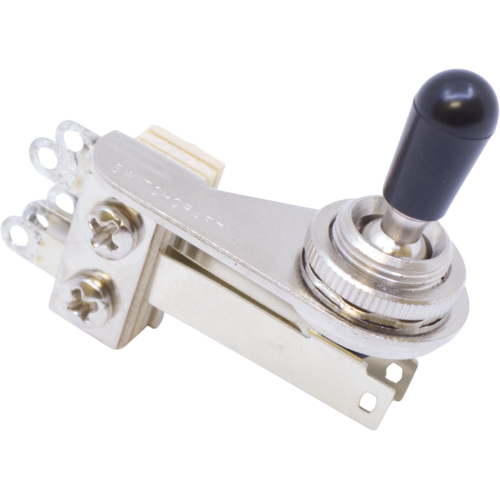

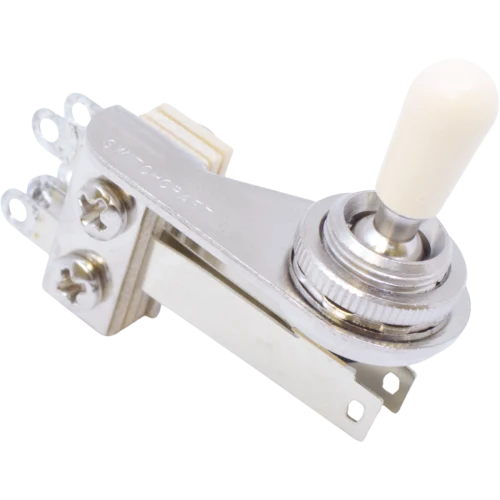

Note: switches do not come with pictured switch tips. These can be ordered separately

Bryan's Take: Personal experience here. In February, I replaced a switch in a guitar with a lesser version of these. By November it had already broken from bedroom playing by a meticulously gentle player. Seriously, for a few extra dollars, this switch will last years longer. We won't carry the cheaper versions because you won't be happy with them.

Not all switch tips will fit these, but this selection will.The tips that do not fit are generally found on import guitar such as Epiphones

If you have an imported instrument, these switches are likely better in build quality but may not fit exactly like the original switch. Check the measurements below for best fit information.

Dimensions:

Length: 1.83 in / 46.39mm
Thread Depth: .2 in / 5mm
Thread Diameter .45 in / 11.51mm
