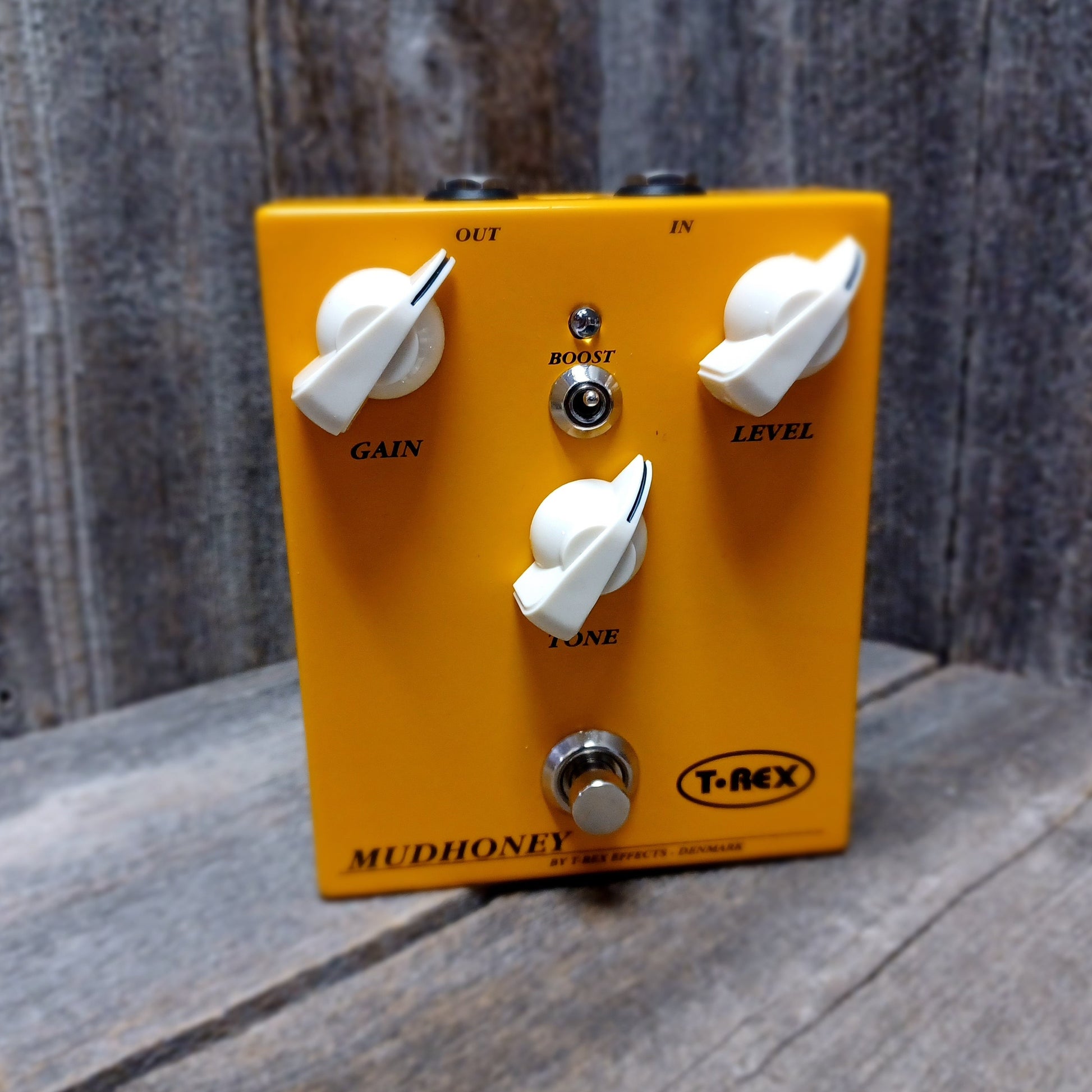

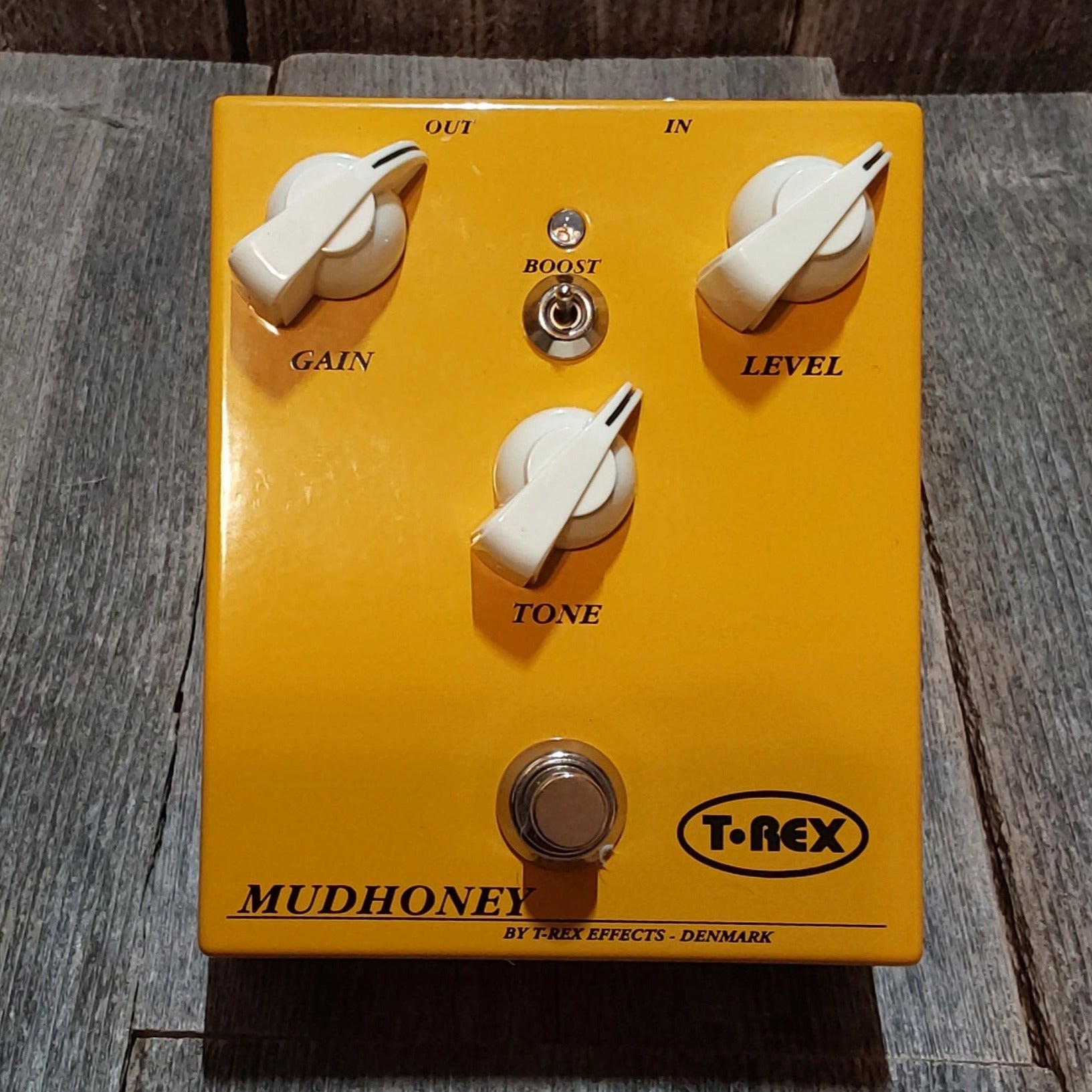

T-Rex Mudhoney Danish Distortion

The Mudhoney distortion was our first shot at making a great, all-round distortion box. That´s how most owners have described it - it just plain works for a lot of different music styles and they haven´t found a similar sound in many other pedals. In fact, there´s  a story about a player that bought and sold six Mudhoney´s, before realizing that the pedals he replaced it with weren´t doing it for him, so he got the seventh one – and kept it.

The slightly aggressive and punchy sounding midrange paired up with a gain mode switch gives you great, natural rock grit – but with the ability to be almost fuzz-like on high gain settings. Conversely, on low gain settings, the sound is really cool for a nastier, growlier rhythm sound.

Still dressed in mellow-yellow, still sounding every bit as good as the old “yellow one”, we are proud to make the Mudhoney sound available to players again.



“The yellow one” - Raunchy-but-smooth distortion

True bypass

Reproduction of the original Mudhoney circuit

Selected parts match or surpass the old ones in quality/sound

CONTROLS

Gain: Adjusts the level of distortion in conjunction with the mode switch

Tone: Adjusts the high/treble frequencies

Level: Controls the output level. Settings above 12 o´clock will boost the level relative to the bypassed signal. At maximum, the output level is boosted appr. 15dB

Mode switch: Controls the overall distortion level from moderate to high-gain

TECH SPECS

Input impedance @ 1KHzHigher than 1M Ohm

Output impedance @ 1KHzLower than 1K Ohm

Power supply9V DC (T-Rex FuelTank)

Minimum power supply voltage8V DC

Maximum power supply voltage12,5V DC

Current draw @ 9V DC6 mA

Maximum input signal V p-p1,5V p-p

Battery type9V battery 6F22

Battery life14-18 hours

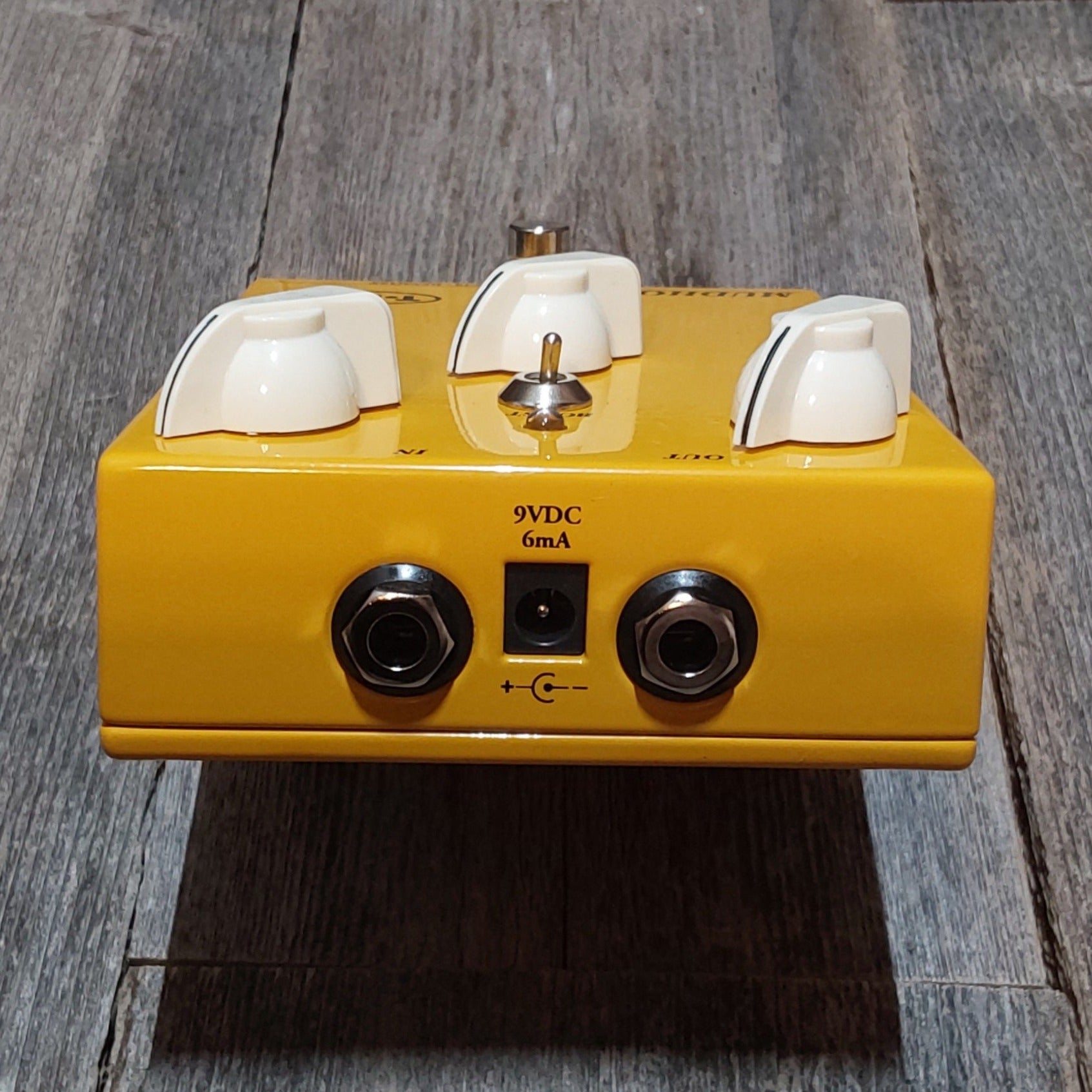

External connectors input jack, output jack, 9V DC jack

ControlsOn/off, level, gain, tone, boost

Pedal size incl. knobs (W x H x D)100 x 55 x 120 mm / 3,9 x 2,2 x 4,7 inch

Weight excl. packaging0,350 kg / 12,3 oz
