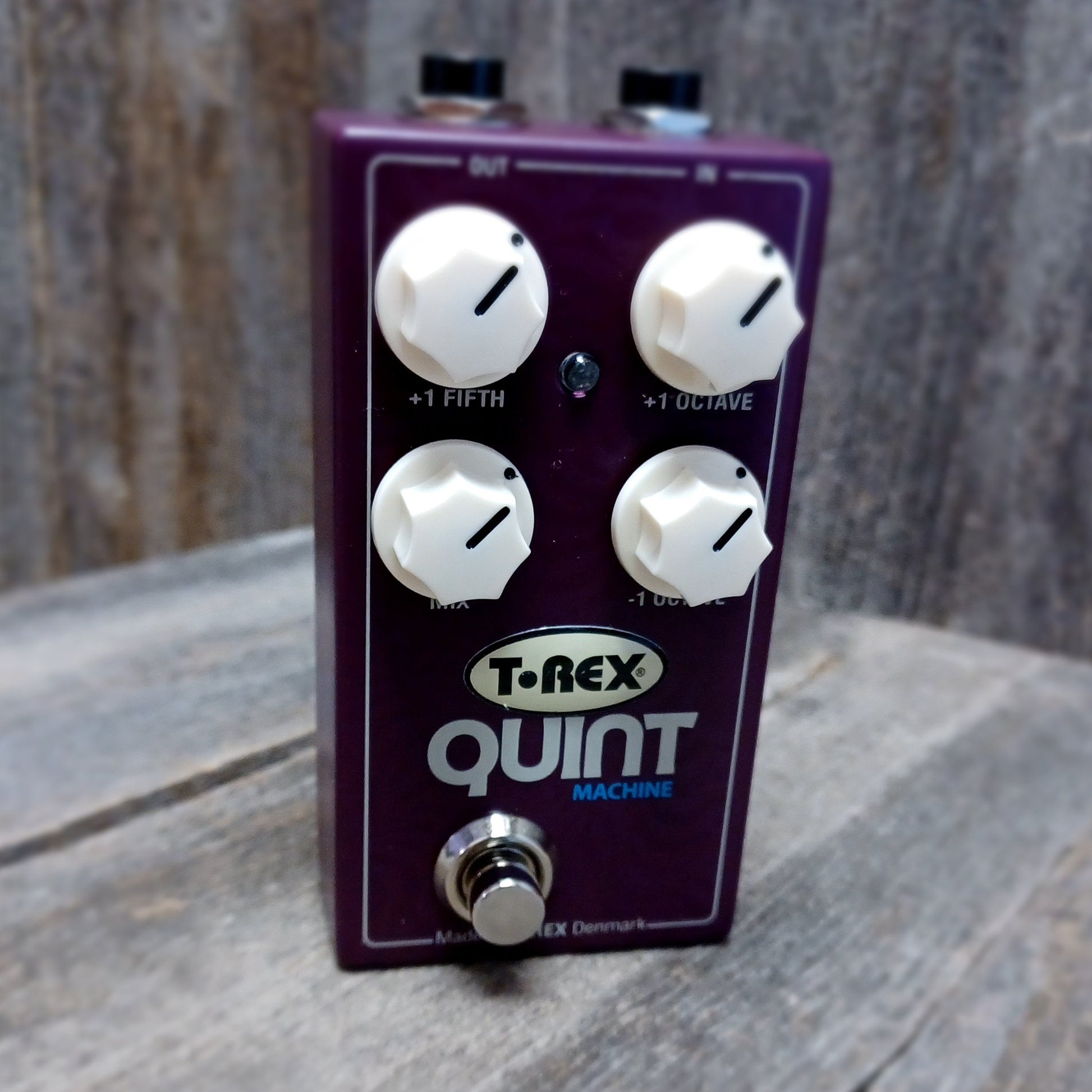

T-Rex Quint Machine Octave/Harmonizer Pedal

Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.

A WHOLE NEW WORLD OF SONIC POSSIBILITIES

Octave up, octave down, 5th up

Individual volume controls, plus master mix

Ultra-fast polyphonic tracking

Replicate organ, synth or 12-string sound

Play power chords on a single note

TECH SPECS

Input impedance @ 1KHzHigher than 1M Ohm

Output impedance @ 1KHzLower than 1K Ohm

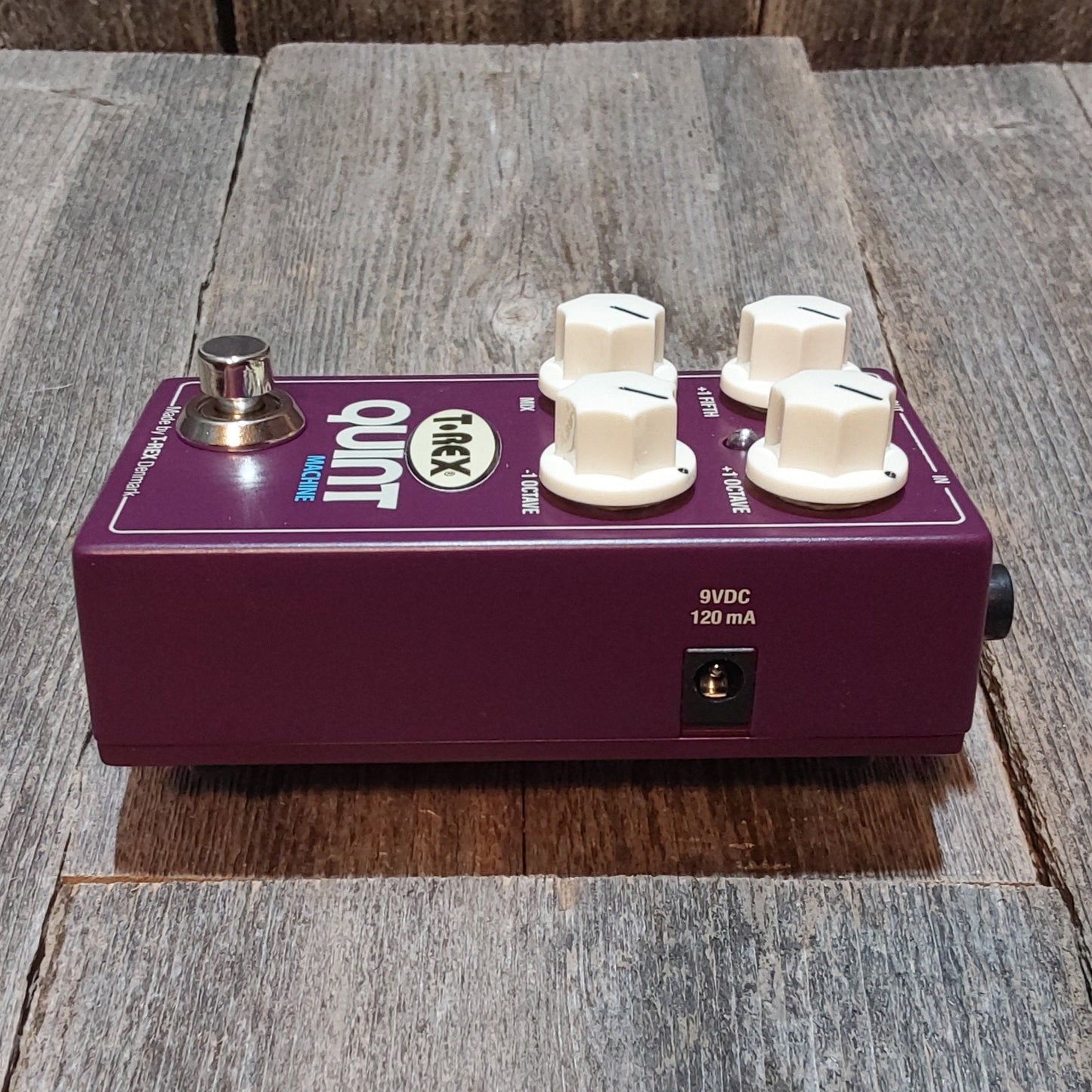

Power supply9V DC (T-Rex FuelTank)

Minimum power supply voltage8V DC

Maximum power supply voltage12,5V DC

Current draw @ 9V DC145 mA

Maximum input signal V p-p3V p-p

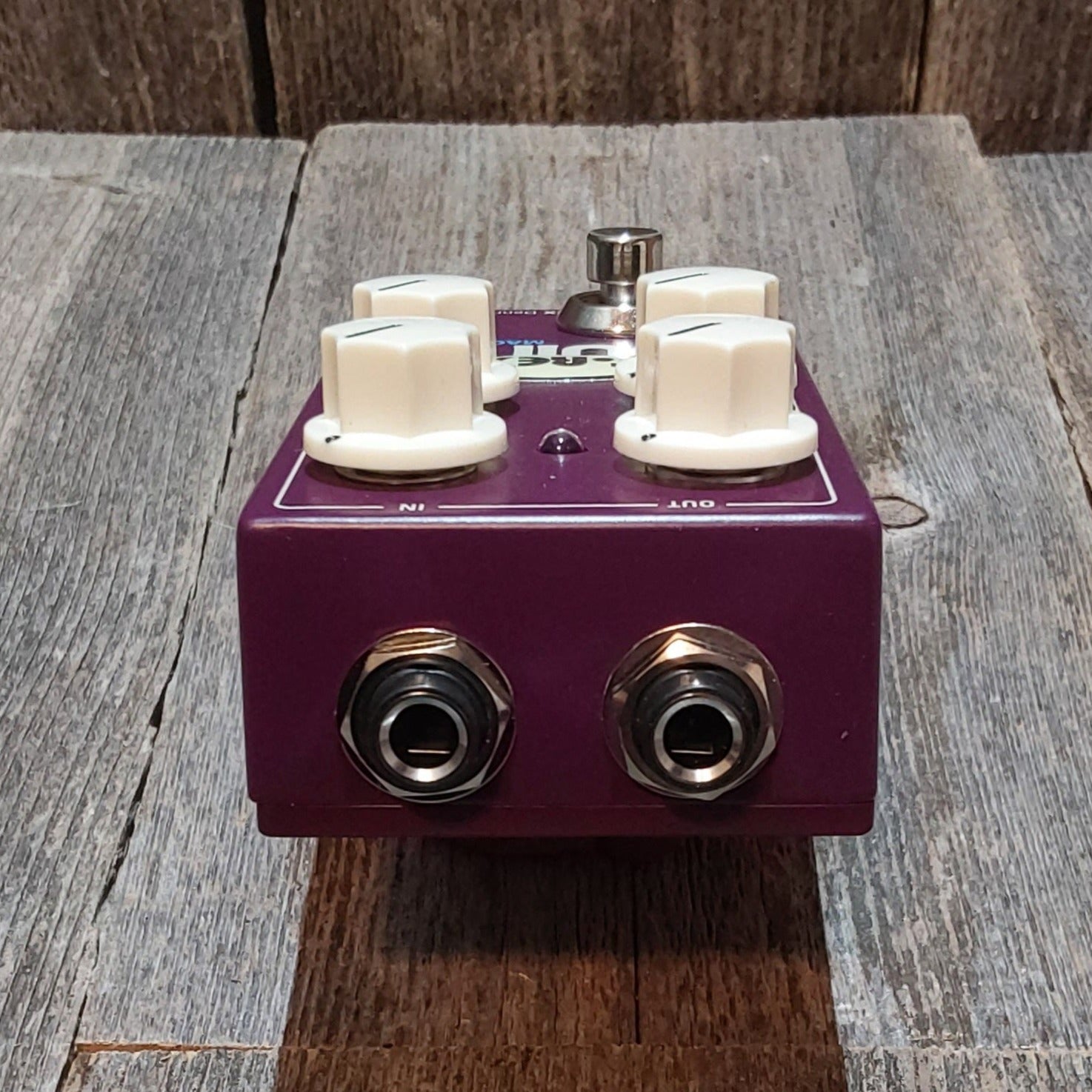

External connectors input jack, output jack, 9V DC jack

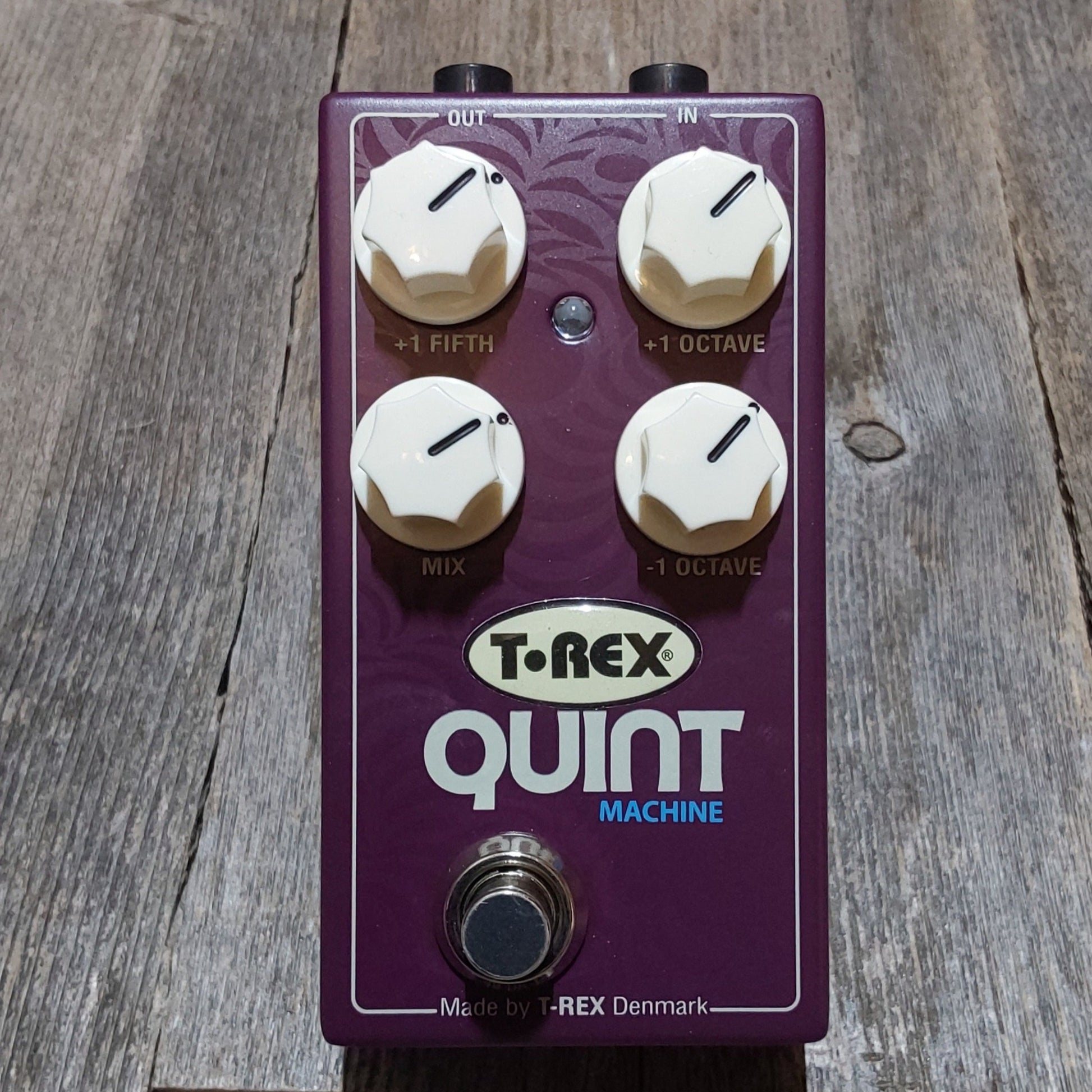

Controlson/off switch, mix, +1 octave, -1 octave, +1 fifth

Pedal size incl. knobs (W x H x D)60 x 50 x 117 mm / 2,4 x 2 x 4,6 in

Weight excl. packaging0,21 kg / 7,4 oz
